SKWEIT product specifications
Choose the right
UVC-LED module.
Two flow classes and three fitting configurations for point-of-use and integrated water systems.

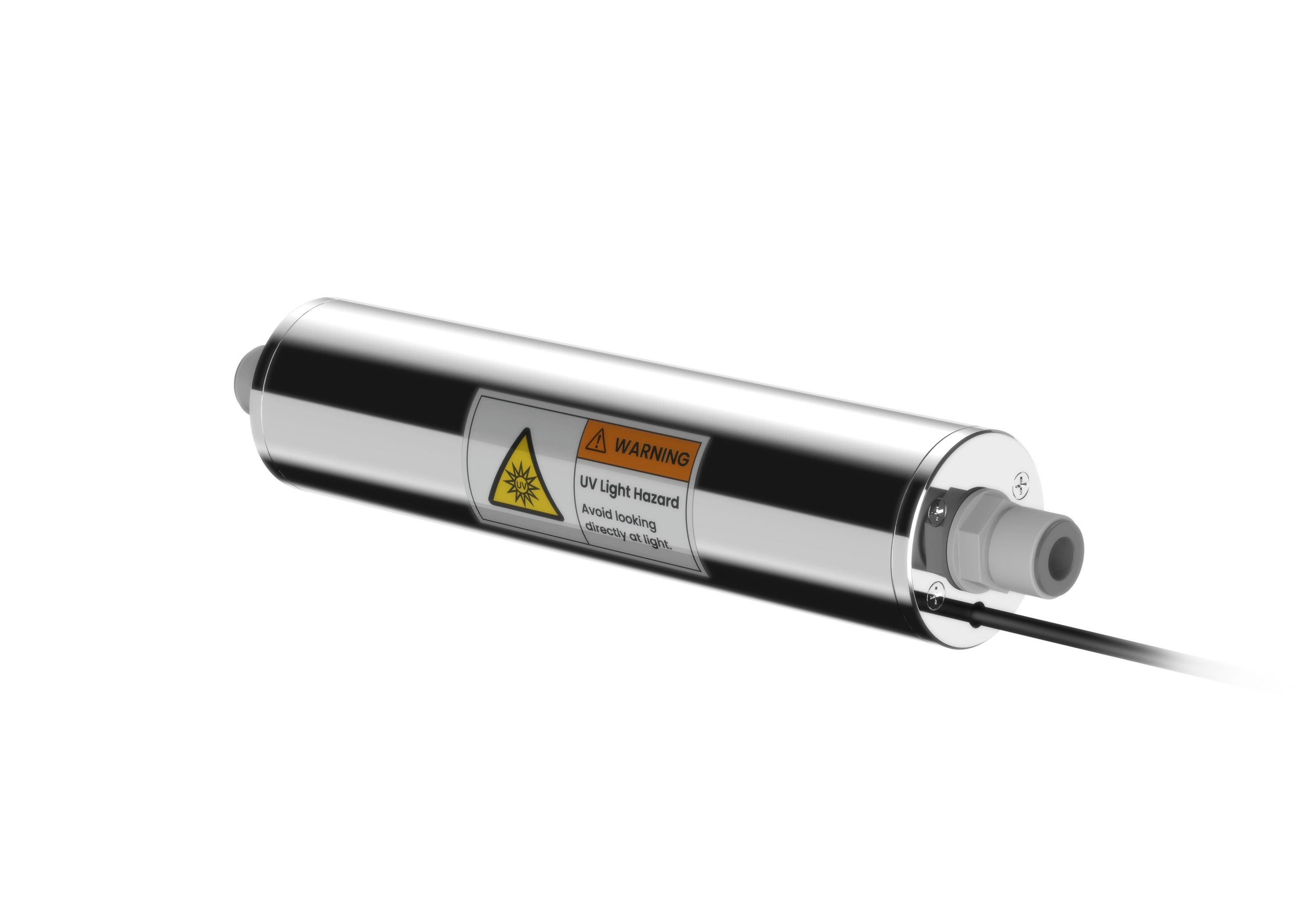

Compact flow · 2-fen interface
1 GPM · 1/4"
Compact UVC-LED water disinfection module for low-flow point-of-use systems. Select a thumbnail to inspect each angle and indicator state.
- Model
- ZXSJ-UVC-1GPM
- Maximum flow rate
- 1 GPM
- UV dose at 1 GPM
- 20 mJ/cm²
- Water pipe fitting
- 1/4" (2-fen)
- Diameter × length
- 41 × 192 mm
- Power adapter input
- AC 100–240 V · 50/60 Hz
- Power adapter output
- DC 24 V · 1.5 A
- Water pressure
- 0.1–0.3 MPa · Max. 0.4 MPa
- Exterior material
- Stainless steel

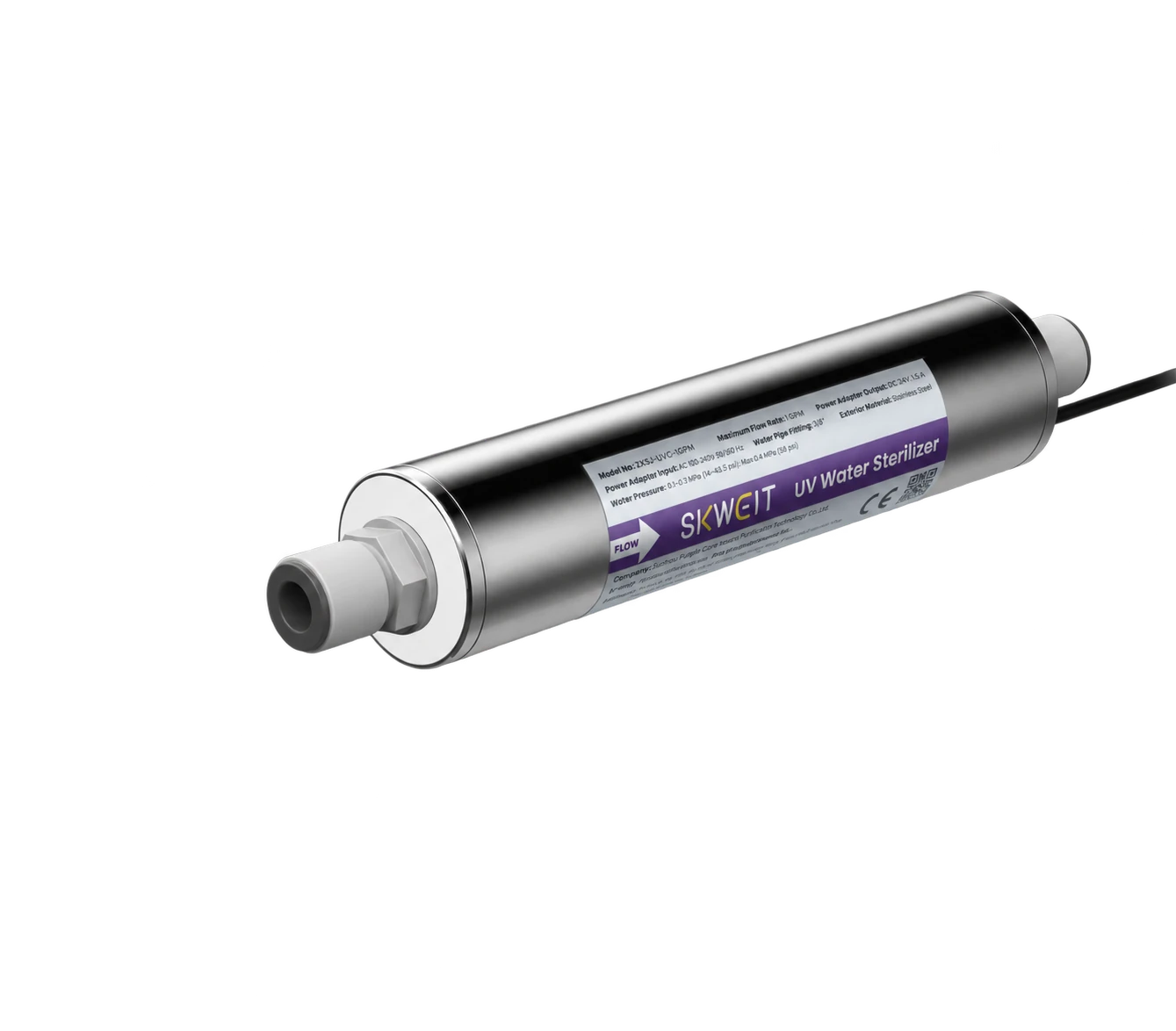

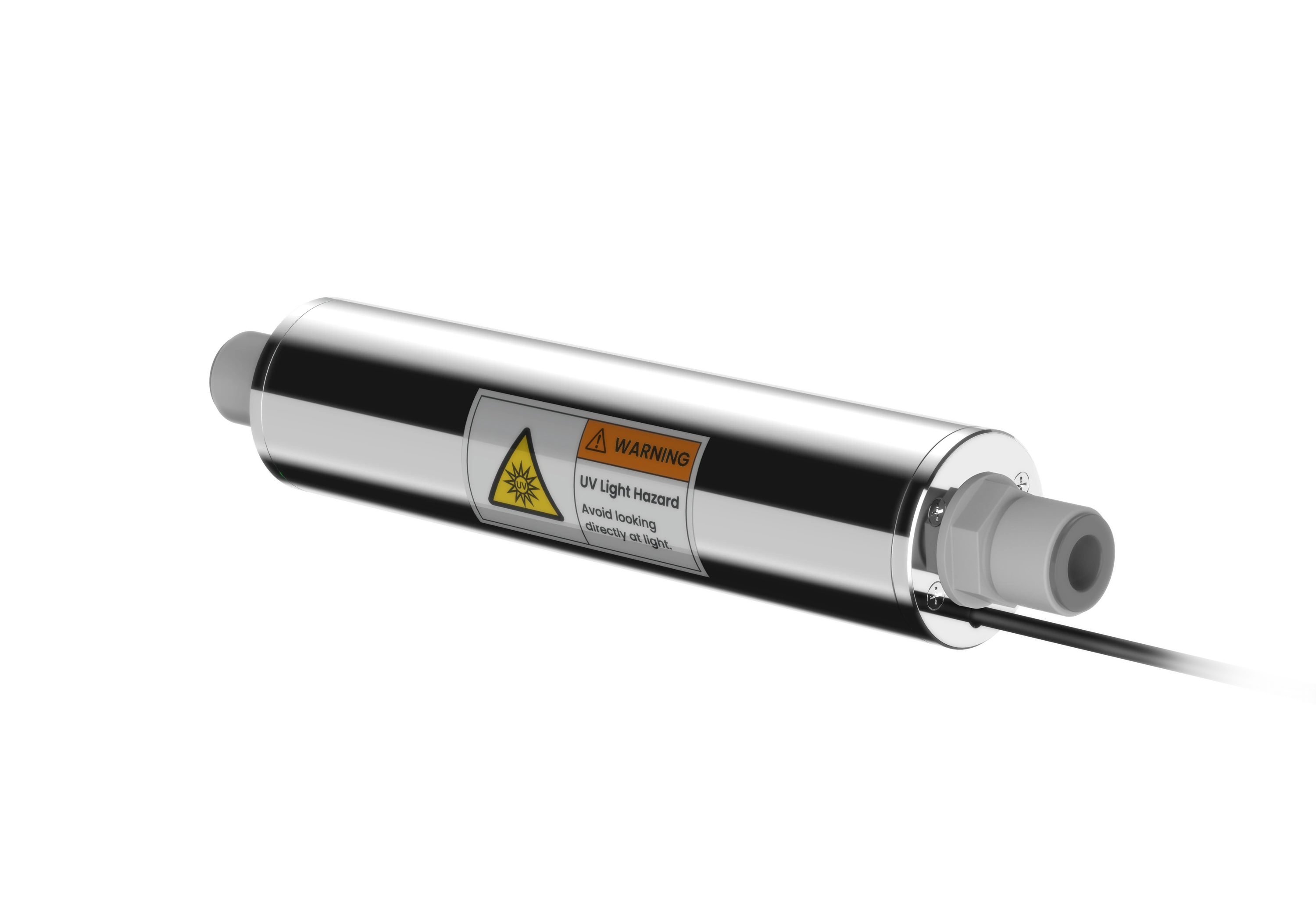

Compact flow · 3-fen interface
1 GPM · 3/8"
The 1 GPM platform with a larger connection for system designs using 3/8-inch water lines. Select a thumbnail for connection and safety-label details.
- Model
- ZXSJ-UVC-1GPM
- Maximum flow rate
- 1 GPM
- UV dose at 1 GPM
- 20 mJ/cm²
- Water pipe fitting
- 3/8" (3-fen)
- Diameter × length
- 41 × 212 mm
- Power adapter input
- AC 100–240 V · 50/60 Hz
- Power adapter output
- DC 24 V · 1.5 A
- Water pressure
- 0.1–0.3 MPa · Max. 0.4 MPa
- Exterior material
- Stainless steel

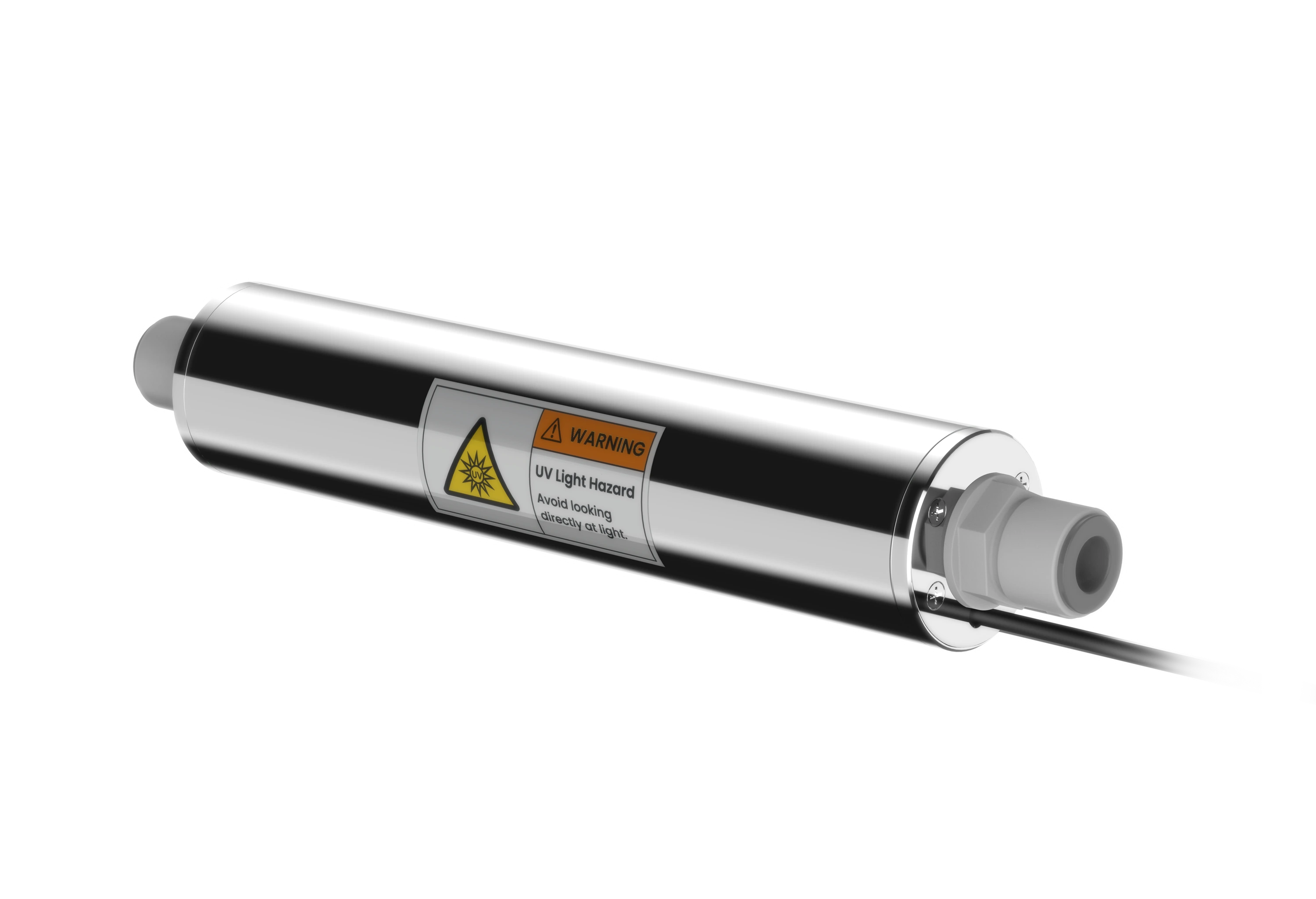

Higher flow · 3-fen interface
3 GPM · 3/8"
Higher-flow UVC-LED water disinfection module for larger dispensers, purifiers and integrated systems. At 1 GPM, the module delivers a UV dose of 30 mJ/cm².
- Model
- ZXSJ-UVC-3GPM
- Maximum flow rate
- 3 GPM
- UV dose at 3 GPM
- 23 mJ/cm²
- UV dose at 1 GPM
- 30 mJ/cm²
- Water pipe fitting
- 3/8" (3-fen)
- Diameter × length
- 41 × 240 mm
- Power adapter input
- AC 100–240 V · 50/60 Hz
- Power adapter output
- DC 24 V · 1.5 A
- Water pressure
- 0.1–0.3 MPa · Max. 0.4 MPa
- Exterior material
- Stainless steel
Indicator guide
Know the operating state instantly.

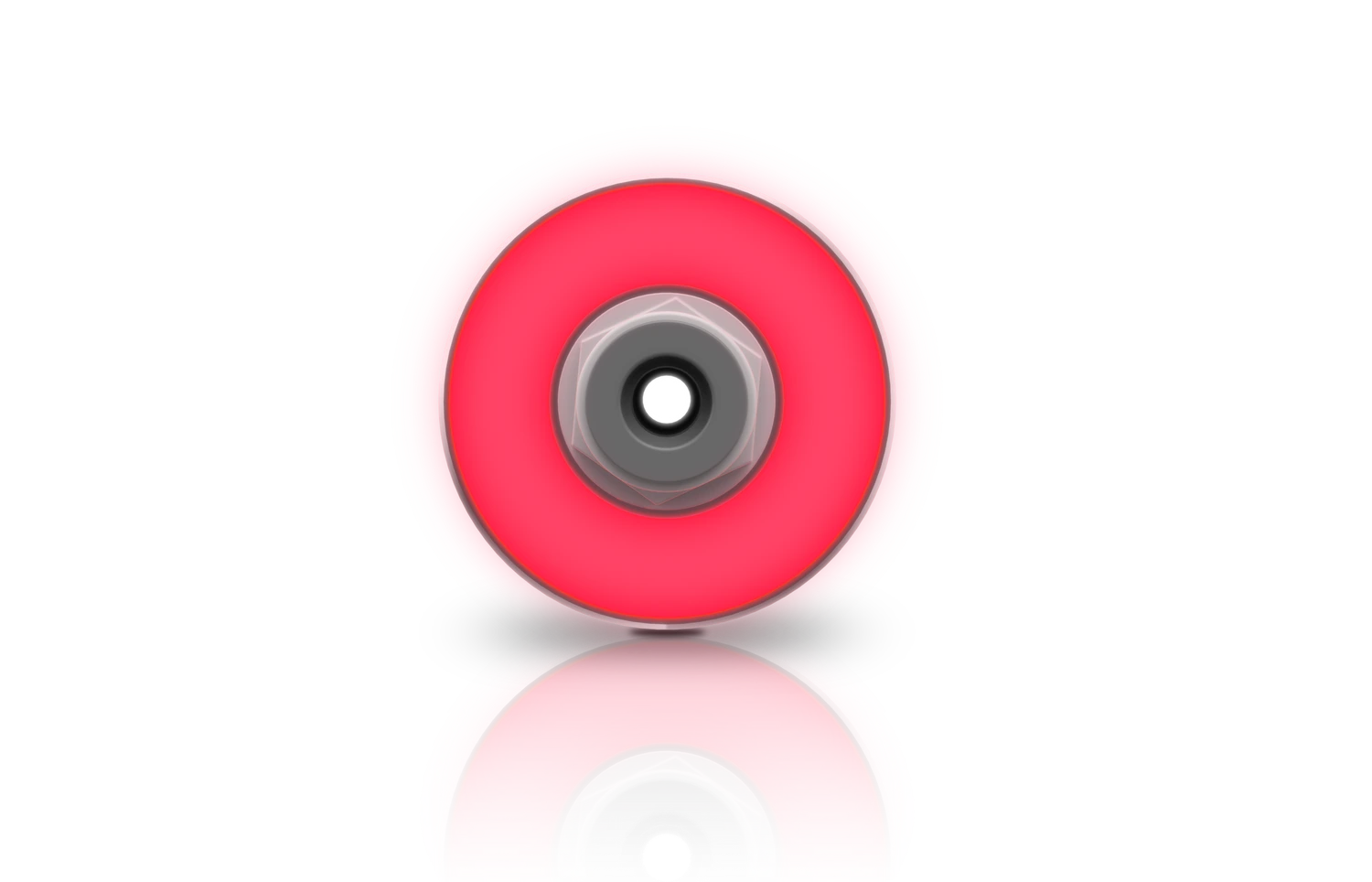

Blue confirms power, green confirms active treatment, and red identifies a device fault that requires attention.

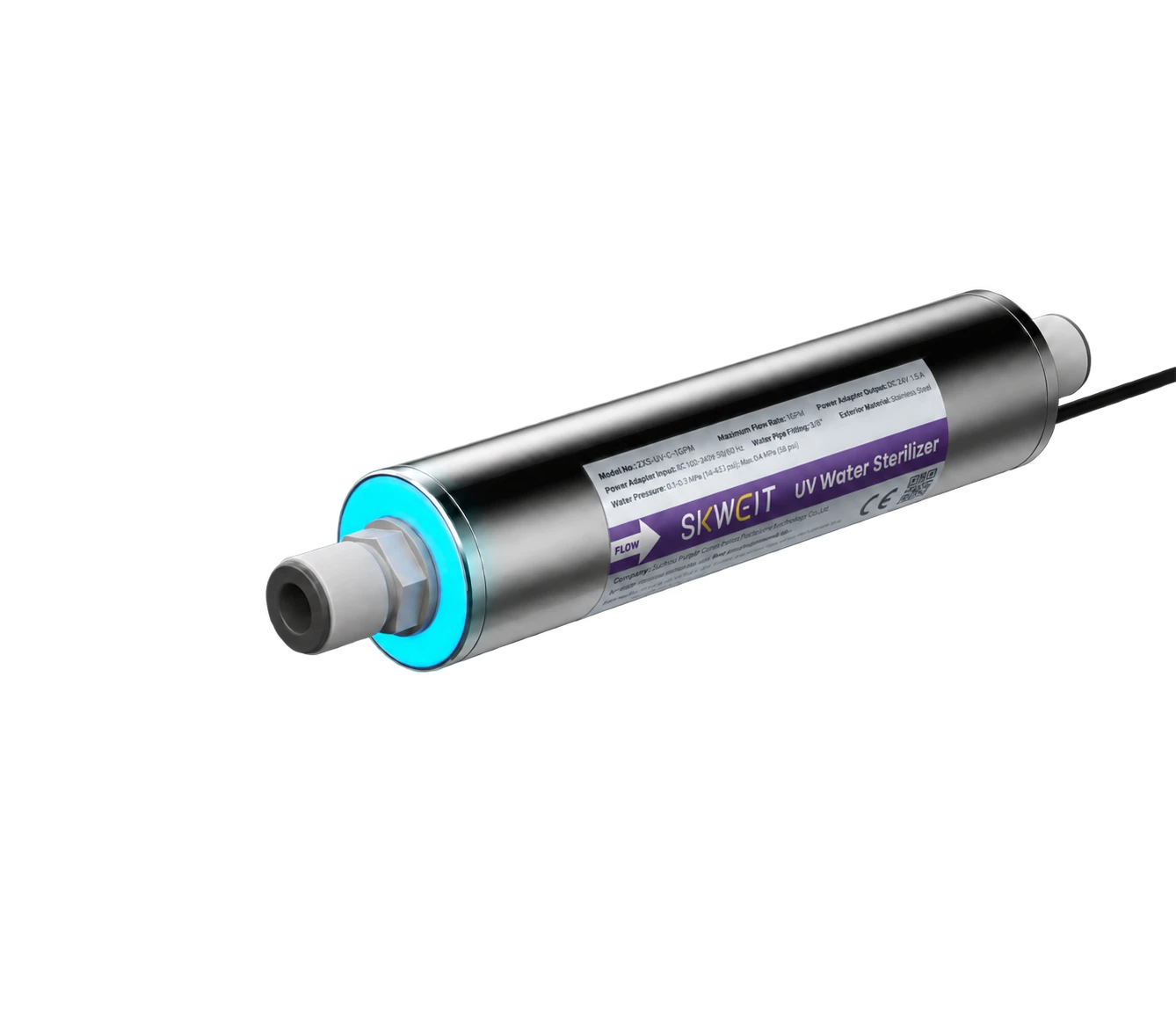

Blue · Power on

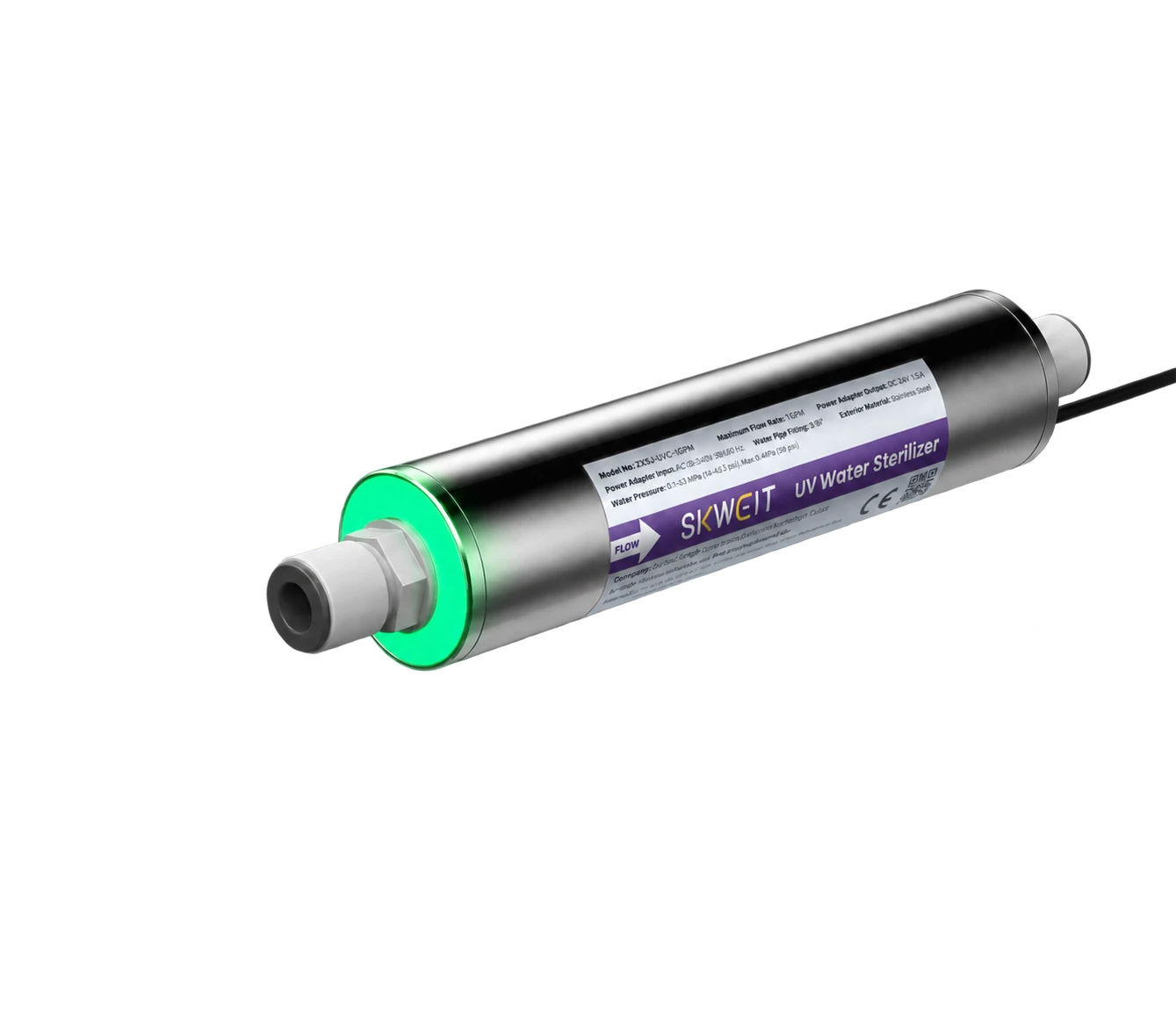

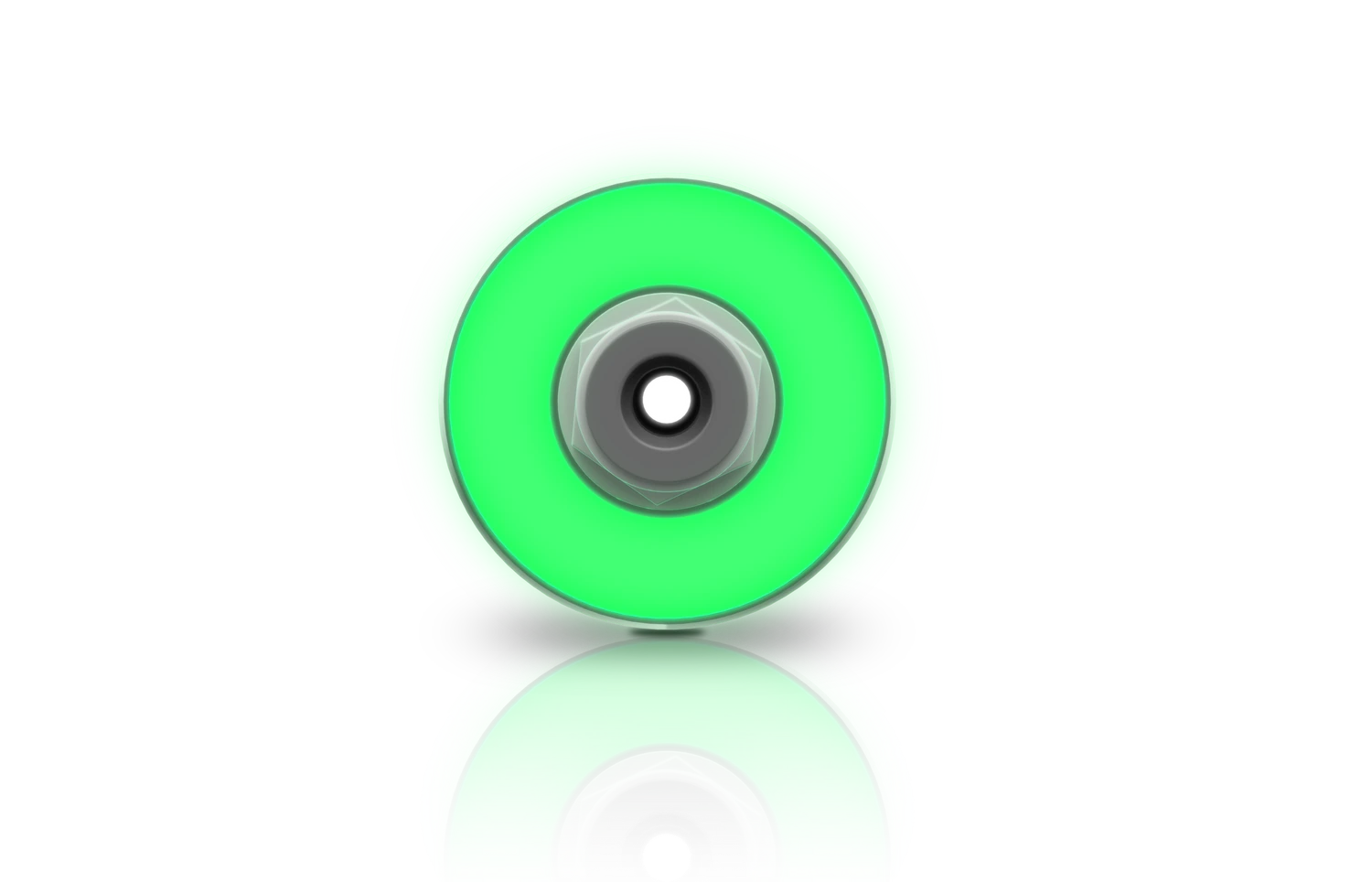

Green · Disinfecting
