In-line UVC-LED water disinfection
What it is: a continuous, chemical-free barrier placed on a treated water line, which inactivates micro-organisms as the water passes a lamp. What it is not: a filter, a stand-alone water purifier, or a treatment for anything dissolved. It removes nothing, leaves no residual, and works only on water that is already clear enough for the light to reach the organisms in it. This section covers how the process works, what decides whether it works, and where the stage belongs in a treatment train.
UVC-LED or mercury lamp?
The comparison, and what suppliers get wrong about the regulation — UVC-LED vs mercury lamp.
Where does the unit go in a system?
Placement rules for RO systems and for well supplies — step-by-step below.
This unit is an in-line UV post-treatment component for RO and under-sink systems. It is not a stand-alone water purifier, and it removes nothing dissolved — filtration happens upstream of it.
What ultraviolet light does to micro-organisms
Ultraviolet light in the germicidal band — roughly 265 to 280 nanometres, which is shorter than visible light and longer than X-rays — is absorbed by the nucleic acids inside a cell. The absorbed energy rearranges the molecule so that the organism can no longer reproduce. It is not a chemical kill and not a physical removal: the organism may still be present, but it cannot multiply, which is what makes it harmless in a water supply.
Because the mechanism is physical, it depends on the light actually arriving. That turns the whole design question into one of delivery: how much ultraviolet energy reaches each part of the water, and for how long.
| Term | What it means |
|---|---|
| Germicidal wavelength | The part of the ultraviolet band that is absorbed by nucleic acids — around 265–280 nm |
| Intensity | How much ultraviolet energy arrives at a given point in the water, in milliwatts per square centimetre |
| Contact time | How long a given volume of water is exposed — set by flow rate against chamber volume |
| Dose | Intensity multiplied by contact time, expressed in millijoules per square centimetre. It is the figure that describes whether a given organism is inactivated, and it is therefore the figure a water treatment system is specified on |
| UV transmittance (UVT) | The fraction of ultraviolet light that passes through the water rather than being absorbed or scattered by what is in it |
A dose figure is a claim about a specific unit, verified under specific conditions. We do not restate another manufacturer's number as if it described this product, and we do not publish one for the ZXSJ-UVC series until the manufacturer's validation documentation is supplied. Where a supplier quotes a dose range without stating the test conditions, the number cannot be compared with anything.
A disinfection stage is not a filter, and the difference matters at the point of sale: nothing is removed from the water, and no protection follows the water out of the chamber.
UVC-LED and low-pressure mercury lamps
Both technologies produce ultraviolet light in the germicidal band and both use it the same way. They differ in how the light is generated, and that difference carries practical consequences for warm-up, packaging, control and disposal.
| Characteristic | UVC-LED | Low-pressure mercury lamp |
|---|---|---|
| Output at switch-on | Immediate — no warm-up period | Requires a warm-up before full output |
| Switching | Can be switched on and off with flow, without affecting life | Switching is normally avoided because it shortens life |
| Form factor | Small solid-state emitters; compact chambers | Glass tube — the size of the tube sets the size of the chamber |
| Containment at end of life | No mercury content in the emitter | Contains mercury; end-of-life handling is a regulated disposal route |
| Regulatory context | Outside the scope of mercury restrictions | Subject to regulatory uncertainty and disposal cost — not a ban |
What the Minamata Convention actually covers, which lamps remain in use, and the claims suppliers make that do not survive checking are set out in UVC-LED vs mercury lamp. The short version: ultraviolet lamps used for water disinfection are not prohibited, and any supplier saying they are is overstating the position.
What decides whether a UV stage works
A lamp's rating describes the lamp, not the installation. Whether the water leaving the unit is actually treated depends on four things, and only one of them is the lamp itself.
Water clarity
Turbidity, colour and dissolved organics absorb or scatter ultraviolet light. The stated feed-water limit for turbidity is below 1.0 NTU. Cloudy water is not treated water with a slightly weaker lamp — it is water the light may not reach at all.
Flow rate
Contact time is set by how fast water crosses the chamber. Raising flow above the rated figure reduces the dose delivered, which is why the flow rating is part of the specification and not a marketing detail.
Sleeve condition
A quartz sleeve separates the emitter from the water. Iron, manganese, hardness scale and general deposits all accumulate on it and all reduce transmission — the lamp is unchanged, the light arriving in the water is not.
Lamp output over life
Ultraviolet output declines with operating hours. The published figure for the emitter used in these units is a design rating of 15,000 hours at not less than 60 per cent of initial output — a design rating, not a validated service-life claim.
Where the stage belongs in a treatment train
Ultraviolet treatment is the last barrier, not the first. Two rules cover almost every installation: the unit goes after everything that removes material, and as close to the point of use as the layout allows.
- After removal stages, never before. Sediment filtration, iron and manganese removal and softening all come upstream. They protect the lamp as much as they protect the water.
- After the storage tank, not before it. A pressure or storage tank is a standing body of water where regrowth happens. A barrier placed before the tank guards the tank, not the tap.
- As close to the point of use as possible. There is no residual after the lamp, so the tubing downstream is unprotected wetted surface. Less of it is better, and this costs nothing to implement.
- On the treated line only. This is a point-of-use component for a single line. It is not a point-of-entry system for a whole property and it is not intended for raw water.
The post-tank regrowth problem, and how an in-line unit is fitted to an existing under-sink RO system with 1/4-inch fittings.
The longer train a private well needs before a UV stage can do anything at all, with the feed-water limits it requires.
How the unit is built and how it behaves
| Item | Detail |
|---|---|

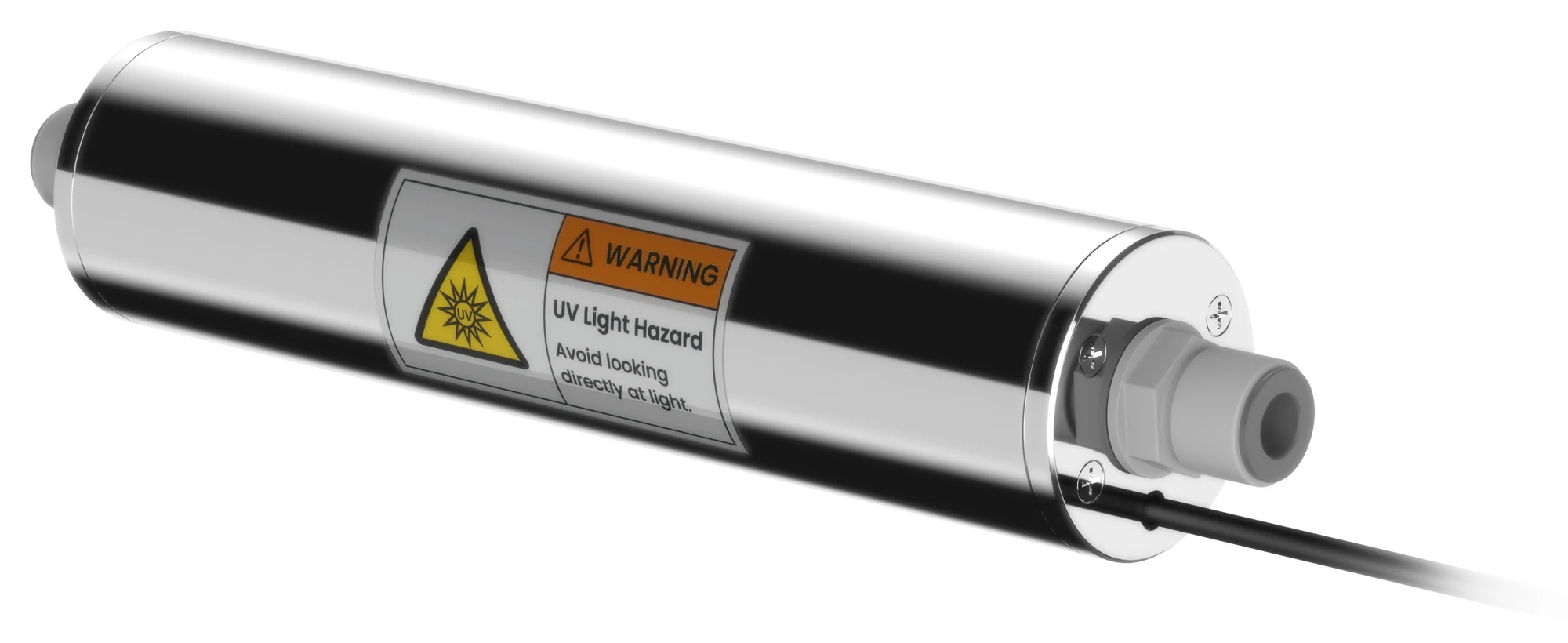

| Treatment chamber | Stainless steel housing with a quartz sleeve separating the emitter from the water |
| Actuation | Flow-sensor operated: starts on water flow, stops when flow stops. No switch and no timer for the user to remember |
| Status indication | Blue for powered or standby, green while sterilising, red for fault |
| Power | External adapter, 100–240 V input, 50/60 Hz |
| Water temperature | Cold water only, 32–100 °F (0–37.8 °C) |
| Maintenance | Periodic cleaning of the quartz sleeve; emitter replacement against the manufacturer's design rating |
| Model | Rated flow | Fitting | Typical application |
|---|---|---|---|
| ZXSJ-UVC-1GPM | 1 GPM (4 LPM) | 1/4-inch | Single-outlet under-sink RO systems |
| ZXSJ-UVC-3GPM | 3 GPM (11.4 LPM) | 3/8-inch | Multi-outlet systems and higher draw points |
The catalogue is sometimes written with 4 LPM and 10 LPM. Those are flow-rate descriptions, not model numbers. The model numbers carried on the certificate, the packaging and the nameplate are ZXSJ-UVC-1GPM and ZXSJ-UVC-3GPM.
What this technology does not do
Most of the disappointment around ultraviolet treatment comes from expecting it to be something else. These are the limits, stated plainly, because a buyer who knows them specifies a better system.
- It does not remove anything. No filter element, no rejection of dissolved solids, no change to mineral content. It is a barrier for living organisms and nothing else.
- It does not address PFAS, lead or nitrate. Those require reverse osmosis, ion exchange or adsorption. A UV stage may belong later in the same train, but for the separate problem of regrowth — not as the removal step.
- It does not protect downstream of the lamp. With no residual, protection ends at the unit. Tanks and long runs of pipe after it are outside its reach.
- It is not a stand-alone water purifier. The feed water must already be treated drinking water inside the unit's stated limits.
- It is not a point-of-entry system. This is a point-of-use component for one treated line, not a whole-property treatment stage.
If the symptom is a smell, a taste, a stain, or a contaminant on a test report, an ultraviolet unit is the wrong component for that finding. Water problems after treatment starts by drawing that line, then routes each symptom to the stage that addresses it.
UVC-LED disinfection
How does UV actually disinfect water?
Ultraviolet light around 265–280 nm is absorbed by the nucleic acids in a micro-organism and rearranges them, so the organism can no longer reproduce. Nothing is added to the water and nothing is removed from it — the process works on the organisms themselves.
Is UV better than a mercury lamp?
They generate the same kind of light and treat water the same way. The practical differences are that an LED emitter reaches full output immediately and tolerates being switched on and off with flow, while a mercury tube needs warm-up and normally stays lit. If a supplier tells you the technology has been prohibited, that claim does not survive checking — see the comparison.
What dose does this unit deliver?
We do not publish a dose figure for the ZXSJ-UVC series until the manufacturer's validation documentation is supplied. Dose is only meaningful when the conditions behind it — flow rate, water clarity, lamp age — are stated, and a number quoted without them cannot be compared with another supplier's.
Does the unit need pre-filtration?
Yes, and the feed-water limits state how much. Turbidity below 1.0 NTU, iron below 0.3 ppm and hardness below 120 ppm are the conditions of warranty. The reason is not bureaucracy — particles shield organisms from the light, and deposits on the sleeve reduce how much light reaches the water.
How long does the emitter last?
The published figure is a manufacturer design rating of 15,000 hours at not less than 60 per cent of initial output, taken from the supplier's reliability documentation. It is a design rating, not a validated service-life claim: actual life depends on drive current, thermal conditions and water quality.
